NIM POWER SUPPLY

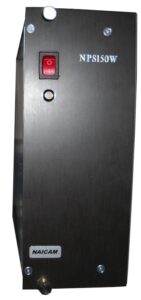

NPS150W

The NIM module NSP150W is a 2,5 NIM size plug-in power supply. The module has all 6 voltages with a maximum output power 150 Watt. This module has over/under voltage, overload and overheat protection and can be adapted for a different input AC voltages 100/115/210/240 VAC, 50-60 Hz. On the front panel the status of power supply by GREEN/RED LED is indicated.
The module has soft start time 0,5 ms and correspond CE isolation standard 61010.

DATASHEET

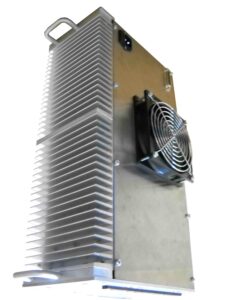

NPS300W

The NIM module NSP300W (optional version NPS450W) is a plug-in power supply. The module has all 6 voltages with a maximum output power 300 Watt (optional version 450W). This module has over/under voltage, overload and overheat protection and can be adapted for different input AC voltages: 110 or 230 VAC, 50 or 60 Hz.

DATASHEET

NPS300_TID20893

The module NSP300W_TID is a plug-in power supply compatible with TID20893 standard NIM pin out. The module has all 6 voltages with a maximum output power 300 Watt (optional version 450W). This module has over/under voltage, overload and overheat protection and can be adapted for different input AC voltages: 110 or 230 VAC, 50 or 60 Hz.

DATASHEET

NHV3002

The NHV3002 is a single width general-purpose NIM module that contains two adjustable power supplies providing the low noise, regulated, very stable high voltage necessary for operation of photomultipliers, ionization chambers, semiconductor detectors, electron multipliers, and other devices. The low-noise output is adjustable from ±10 to ±3000 V dc with up to 1000 uA load current. Noise on the output is <10 mV peak-to-peak. The front-panel graphic display 96x64 pixel and 4 touch bottom permit set all control parameters and visual monitoring of either the output voltage or the output current. The output voltage can be controlled from ±10 to ±3000 V. Output current can be monitored with resolution 10 nA.The module NHV5004 has overload and short-circuit protection of all channels. All channel’s of the module can be controlled through RS232 or RS485 interface.

DATASHEET

NHV5000

The NHV5000 is a single width general-purpose NIM module that contains one adjustable power supply providing the low noise, regulated, very stable high voltage necessary for operation of photomultipliers, ionization chambers, semiconductor detectors, electron multipliers, and other devices. The low-noise output is adjustable from ±10 to ±5000 V dc with up to 2 mA load current. Noise on the output is <2 mV peak-to-peak. The front-panel graphic display 96x64 pixel and 4 touch bottom permit set all control parameters and visual monitoring of either the output voltage or the output current. The output voltage can be controlled from ±10 to ±5000 V. Output current can be monitored with resolution 1uA. The module NHV5000 has overload and short-circuit protection. The module can be controlled through RS232 interface. The local or remote control can be selected by switch on the front panel of the module.

DATASHEET

NHV5004

The NHV5004 is a single width general-purpose NIM module that contains four adjustable power supplies providing the low noise, regulated, very stable high voltage necessary for operation of photomultipliers, ionization chambers, semiconductor detectors, electron multipliers, and other devices. The low-noise output is adjustable from ±10 to ±5000 V dc with up to 500 uA load current. Noise on the output is <5 mV peak-to-peak. The front-panel graphic display 96x64 pixel and 4 touch bottom permit set all control parameters and visual monitoring of either the output voltage or the output current. The output voltage can be controlled from ±10 to ±5000 V. Output current can be monitored with resolution 10 nA. The module NHV5004 has overload and short-circuit protection of all channels. All channel’s of the module can be controlled through RS232 or RS485 interface.

DATASHEET
